5052-O Aluminum Alloy plate / Sheet High Fatigue strength & High
Tensile Strength
5052 aluminum plate is AL-Mg series alloy aluminum plate. Magnesium
is the main alloying element in 5052 alloy aluminum plate. It is
the most widely used anti-rust aluminum. This alloy has high
strength, especially fatigue strength: plasticity and corrosion
resistance. High performance, cannot be strengthened by heat
treatment, good plasticity during semi-cold work hardening, low
plasticity during cold work hardening, good corrosion resistance,
good weldability, poor machinability, and polishing.
Aluminum-magnesium alloy also contains a small amount of manganese,
chromium, beryllium, titanium and so on. Except for a small amount
of solid solution, most of the manganese in the alloy forms MnAl6.
The role of chromium in 5052 aluminum plate is similar to that of
manganese, which improves the resistance to stress corrosion
cracking, improves the strength of the base metal and the weld
seam, and reduces the tendency of welding cracks, but its content
generally does not exceed 0.35%.
This major series of this series aluminum pipe provided by Bozhong
includes 5005, 5052, 5754, 5083 series.
5000 Series Aluminum pipe
Length:2000-8000mm
Application:decoration, outer shell for household products

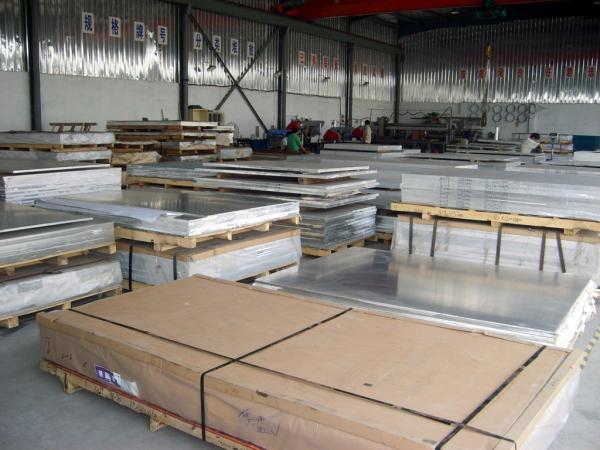

Packing:blank waterproof paper , kraft, wooden case or pallet
(fumigation report for the wooen packing material )
Grade:5005 5052 5083 5086 5154 5182 5251 5754 etc.
Features
Very good elongation, anticorrosion performance
5000 Aluminum pipe Features
The main ingredient of this series aluminum pipe is magnesium
element and the content is between 3% and 5%. It is also called
aluminum magnesium alloy. With its low density, it features high
tensile strength and elongation. This series aluminum pipe is a
commonly used and mature series in China.
5000 Aluminum pipe Applications With the same area of other series, the weight of this aluminum
pipe is lighter. As a result, it is used in aviation, such as in
the fuel tanks in airplanes. It is widely used in conventional
industries. This aluminum pipe can be used in continuously casting
and rolling. It can be hot rolled. As a result, it can be used in
oxidation and deep processing.
| Grade | Chemical composition |
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | | Ti | Zr |
| 5019 | 0.4 | 0.5 | 0.1 | 0.10~0.6 | 4.5~5.6 | 0.2 | - | 0.2 | Mn+Cr:0.10~0.6 | 0.2 | - |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | - | 0.25 | - | - | - |
| 5050 | 0.4 | 0.7 | 0.2 | 0.1 | 1.1~1.8 | 0.1 | - | 0.25 | - | - | - |
| 5251 | 0.4 | 0.5 | 0.15 | 0.10~0.50 | 1.7~2.4 | 0.15 | - | 0.15 | - | 0.15 | - |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | - | 0.1 | - | - | - |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | - | 0.2 | Mn+Cr:0.10~0.6 | 0.15 | - |
| 5056 | 0.3 | 0.4 | 0.1 | 0.05~0.20 | 4.55.6 | 0.05~0.20 | - | 0.1 | - | - | - |
| 5456 | 0.25 | 0.4 | 0.1 | 0.50~1.0 | 4.7~5.5 | 0.05~0.20 | - | 0.25 | - | 0.2 | - |
| 5082 | 0.2 | 0.35 | 0.15 | 0.15 | 4.0~5.0 | 0.15 | - | 0.25 | - | 0.1 | - |
| 5182 | 0.2 | 0.35 | 0.15 | 0.20~0.50 | 4.0~5.0 | 0.1 | - | 0.25 | - | 0.1 | - |
| 5000 series aluminum alloy sheet physical properties |
| Tension strength | σb (MPa) ≥270 |
| Yield strength | σ0.2 (MPa)≥120 |
| temper | H32 H112 H111 H24 |
| Hardness | HB45-75 |
| Elongation | >12 |
Note:
Special dimensions can be produced according to your requirement
Bozhong is a professional manufacturer and supplier of 5000 aluminum pipe based in China. We also offer aluminum coil, aluminium slit coil,
aluminum sheet, coated aluminum coil, diamond aluminum tread
pipe,and more. Whenever you have a need for any of our products,
please feel free to contact us.
