Coated Surface Abrasion Resistant Sheet Carbon Steel Plate Hot
Rolled
Description
Chemical Composition (in weight %)
| C | Si | Mn | Cr | Mo | Ni | V | W | Others |
| 0.14 | max. 0.40 | 0.55 | 0.98 | 0.60 | - | - | - | max. Cu = 0.30 |
Description
Alloy special structural steels. Cr-Mo-steels with > 0.35% Mo.
Applications
High-temperature structural steel: Collectors, water boiler and
superheater tubes (530oC).
Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 210
Density [g/cm3]: 7.85
Soft Annealing
Heat to 680-720oC, cool slowly in furnace.
Hardening
Harden from a temperature of 910-940oC followed by oil or air quenching.
Tempering
Tempering temperature: 650-720oC.
Mechanical Properties in Hardened and Tempered Condition
| Diameter in mm | 0.2 % proof stress (N/mm2) | Tensile strength (N/mm2) | Elongation (%) | Impact strength (J) |
| up to 60 | 295 | 440-590 | 20 | 44 |
| 61-90 | 285 | 440-590 | 20 | 44 |
| 91-150 | 275 | 440-590 | 20 | 44 |
0.2 % Proof Stress (N/mm2) vs. Temperature
| 100oC | 150oC | 200oC | 250oC | 300oC | 350oC | 400oC | 450oC | 500oC |
| 260 | 245 | 240 | 230 | 215 | 200 | 190 | 180 | 175 |
| 250 | 240 | 230 | 220 | 205 | 190 | 180 | 170 | 165 |
| 250 | 235 | 220 | 210 | 195 | 180 | 170 | 160 | 155 |
1 % Creep Limit (N/mm2) vs. Temperature (oC)
| Hours | 450oC | 460oC | 480oC | 500oC | 520oC | 540oC | 560oC |
| 10 000 | 245 | 228 | 193 | 157 | 122 | 90 | 64 |
| 100 000 | 191 | 172 | 133 | 98 | 70 | 46 | 30 |
Creep Rapture Strength (N/mm2) vs. Temperature (oC)
| Hours | 450oC | 460oC | 480oC | 500oC | 520oC | 540oC | 560oC |
| 10 000 | 370 | 348 | 304 | 239 | 179 | 129 | 91 |
| 100 000 | 285 | 251 | 190 | 137 | 94 | 61 | 40 |
| 200 000 | 260 | 226 | 167 | 115 | 76 | 50 | 32 |
Forging
Hot forming temperature: 1100-850oC.
Machinability
No data.
Forms manufactured: Please see the Dimensional Sales Program.
Disclaimer
The information and data presented herein are typical or average
values and are not a guarantee of maximum or minimum values.
Applications specifically suggested for material described herein
are made solely for the purpose of illustration to enable the
reader to make his own evaluation and are not intended as
warranties, either express or implied, of fitness for these or
other puposes. There is no representation that the recipient of
this literature will receive updated editions as the become
available.
What we can offer?
We offer a wide range of steel products in a wide variety of
dimensions and executions, acc.to the common international
specifications or customerized.
Machining and heat treatment are available.
Also, we advise you in choosing the right materials.

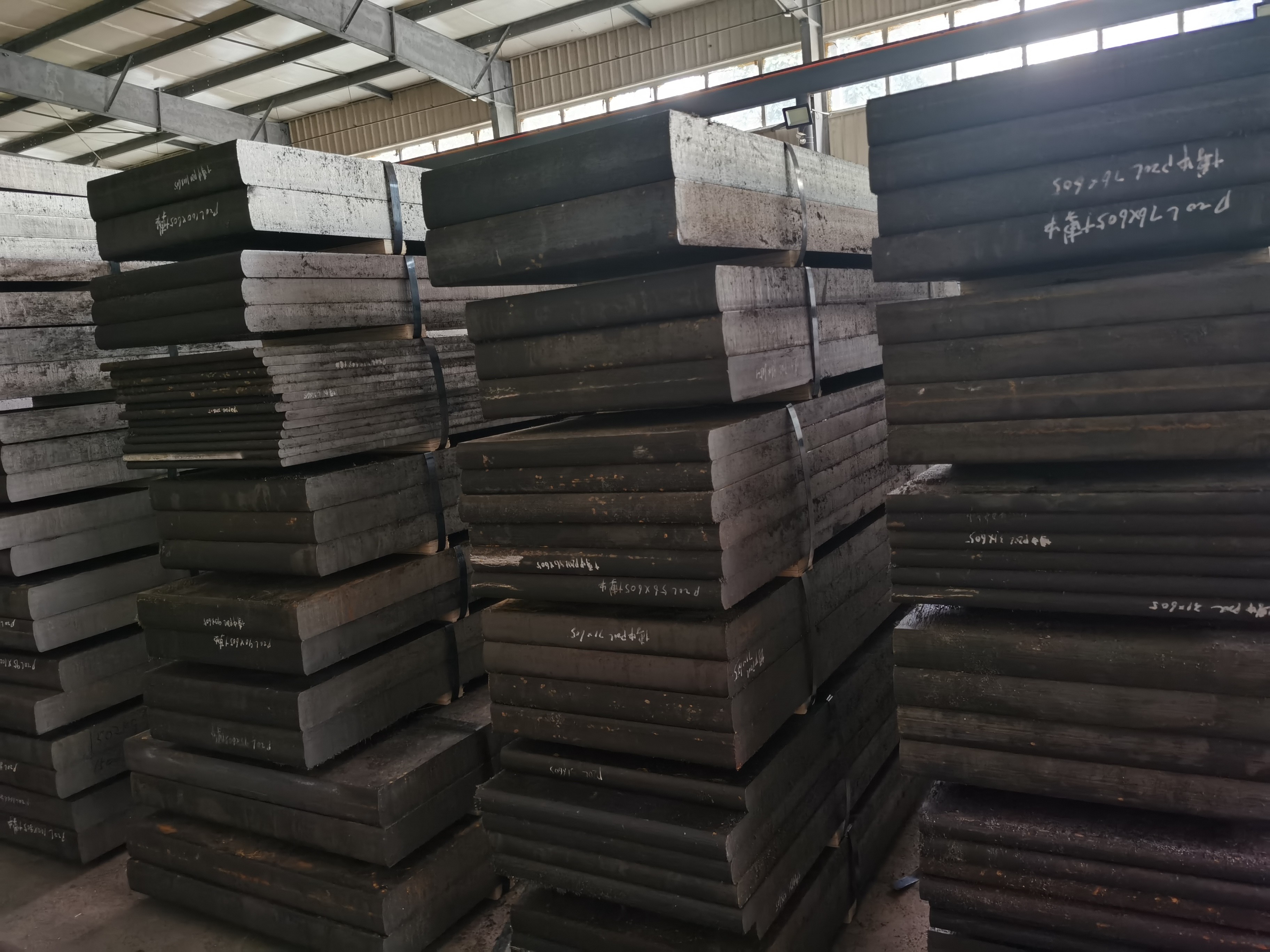

Shape Available
Solid round bar
Flat bar
Square bar
Hexagon bar
Block
Plate
Sheet
Wire rod
Strip
Quality Assurance:
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
Our Company:
Bozhong Group Mainly supply in forms of coil, sheet, plate, rod,
bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc.,
with various varieties, wide range of dimensions, high purity,
stable chemical composition, high dimensional accuracy and
excellent surface quality. The products are mainly used in the
fields of industries such as automobile engineering, railway
transportation, aviation, aerospace, machinery, petrochemical,
energy, environmental protection, offshore, chemical, oil & gas,
military, power plant, nuclear power, pressure vessel, boiler
equipment, mold manufacture, etc
Our Service For You
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by
buyer's side.
2. We have full stock,and can deliver within short time.Many styles
for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or
design are available.
4. Good Quality + Factory Price + Quick Response + Reliable
Service, is what we are trying best to offer you
5. All of our products are produce by our professional workman and
we have our high-work-effect foreign trade team, you can totally
believe our service.
6. We have 8 year experience of design, manufacture and sell
lingerie, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at
once.
2. Check quality again, then send out to you at 1-2 working day
after your payment,
3. Email you the tracking no, and help to chase the parcels until
it arrive you.
After-sale choose
1. We are very glad that customer give us some suggestion for price
and products.
2. If any question,please contact with us freely by E-mail or
Telephone.
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and
trading company. We specialized in special steel which include
alloy structural steel and carbon steel and stainless steel, etc.
All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party,
such as TUV, CE, if you need. Secondly, we have a complete set of
inspection system and every process is checked by QC. Quality is
the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our
warehouse. If the material don't have stock, the delivery lead time
is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the
order?
A: Yes. We can provide sample to you for approval before you place
an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you
come to China and arrange our driver to our airport to pick you up
when you come.
