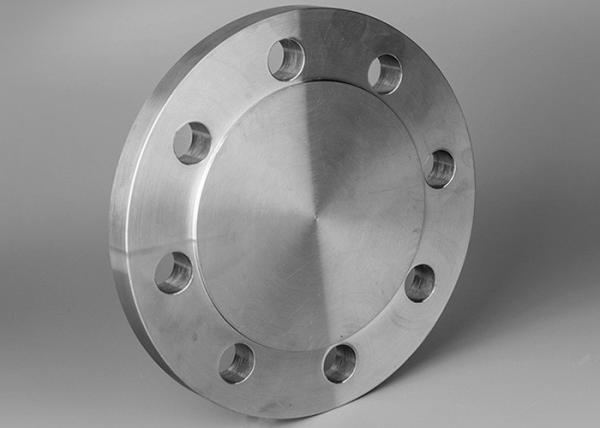

310 Stainless Steel Flanges of Pipe fitting
Size range: 1/2" to 80" DN10 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded,
lap-joint
Pressure: PN2.5,PN6,PN10,PN16,PN25,PN40, class150, class300,
class600, class900, class1500, class2500.
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160.
SCHXXS
Material: carbon steel , stainless steel ,alloy steel
Coating: black paint, yellow transparent paint, cold and hot dip
galvanized
Specification:
1. Stainless Steel: ASTM A 182, A 240
2. Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321,
321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205,
Super Duplex stainless steel UNS S32750
3. Size: ANSI B 16.5 from 1/2″ to 24″ and classes150 to 2500
(complete range)
4. Pressure: ANSI class 150 to 2,500
Surface:
Raised face (RF)
The scope of European system for stainless steel flanges
|
| Sealing surface type | Nominal pressure PN / MPa (bar) | | | | | | | |
| 0.25 | 0.6 | 1 | 1.6 | 2.5 | 4 | 6.3 | 5 | 16 | 25 |
| -2.5 | -6 | -10 | -16 | -25 | -40 | -63 | -100 | -160 | -250 |
| Raised face (RF) | DN10-300 | DN10-2000 | DN10-1000 | DN10-600 | DN10-400 | DN10-300 | DN10-250 |
| Convex surface (MFM) | - | DN10-600 | DN10-400 | DN10-300 | - |
| Tongue and groove (TG) | - | DN10-600 | DN10-400 | DN10-300 | - |
| Plane (FF) | DN10-3000 | DN10-2000 | - |
| Ring joint face (RJ) | - | DN15-400 | DN15-300 | DN15-250 |
| | | | | | | | | | |
| The scope of American system for stainless steel flanges | | | | | |
| | | | | | | | | | |
| Sealing surface type | Nominal pressure PN / MPa (Class) | | | | |
| 2 | 5 | 11 | 15 | 26 | 42 | | | | |
| (150LB) | (300LB) | (600LB) | (900LB) | (1500LB) | (2500LB) | | | | |
| Raised face (RF) | DN15-600 | DN15-300 | | | | |
| (1/2 “to 24″) | (1/2 “-12″) | | | | |
| Convex surface (MFM) | - | DN15-600 | DN15-65 | DN15-300 | | | | |
| (1/2 “to 24″) | (1/2 “-2.1 / 2″) | (1/2 “-12″) | | | | |
| Tongue and groove (TG) | - | DN15-600 | DN15-65 | DN15-300 | | | | |
| (1/2 “to 24″) | (1/2 “-2.1 / 2″) | (1/2 “-12″) | | | | |
| Plane (FF) | DN15-600 | - | | | | |
| (1/2 “to 24″) | | | | |
| Ring joint face (RJ) | DN25-600 | DN15-600 | DN15-300 | | | | |
| (1/2 “to 24″) | (1/2 “to 24″) | (1/2 “-12″) | | |
These are mainly used on heat coupling of pipes when there is
possibility of expansion of the section while bending stress on the
coupling.Application:
Oil Field, Offshore, Water System, Shipbuilding, Natural Gas,
Electric Power, Pipe Projects etc.
Package:
The stainless steel flange products are packed according to the
international standards and regulations as well as to customer’s
requests. We would take great care to avoid any damage during
storage or transportation of the stainless steel flanges.
