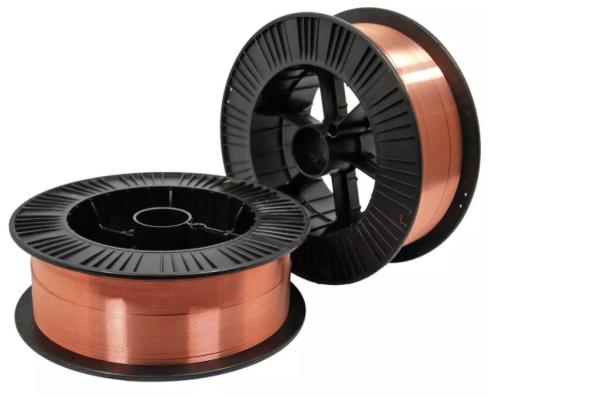

ER70S-6 MIG Copper Welding Wire Gas Protection Co2 0.8mm 1.0mm 1.2mm

Product Categories

Shanghai Bozhong Metal Group Co., Ltd.

Contact Now

ER70S-6 MIG Copper Welding Wire Gas Protection Co2 0.8mm 1.0mm 1.2mm

Ask Lasest Price
Brand Name :	BOZHONG
Model Number :	ER70S6
Certification :	IOS,SGS
Price :	USD0.8-1.0/KG FOB SHANGHAI
Payment Terms :	L/C, T/T
Supply Ability :	100TONS PER MONTH
Delivery Time :	7-25DAYS ACCORDING TO YOUR ORDER QUANTITY

Add to Cart

Product Details
Company Profile

ER70S-6 MIG Copper Welding Wire Gas Protection Co2 0.8mm 1.0mm 1.2mm

Certificate	CE ISO9001, ABS,LR,CCS,DB ,TUV.etc
Packing Details	Packing Size: 275mm* 275mm* 105mm 300mm300mm105mm Outer Packing:1spool/ctn Every spool product is strongly packed by carton box with antirust paper inside. Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft
MOQ	1 Pallet
Warranty	1 year
Payment	T/T,L/C,D/P, Western Union

Features:

ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.

Application:

Used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

Conform with:

GB/T ER50-6 DIN SG2 JIS YGW12

AWS ER70S-6 BS A18 EN G3Si1

Package

Specificaton

Wire Tray

Weight

Φ1.0~1.6mm

D100mm D200mm

D270mm D300mm

K300mm

1kg 5kg 20kg 250kg

Wire Chemical Composition(%)
C	Mn	Si	P	S	Cr	Ni	Cu
0.06~0.15	1.40~1.85	1.80~1.15	≤0.025	≤0.035	-	-	≤0.50

Deposited Metal Mechanical Properties

Yield Strength

σ0.2(Mpa)

Tensile Strength

σb(Mpa)

Elongation

δ5%

AKV Imapact Energy

(J)(-40℃)

≥420

≥500

≥22

≥90

Diameter of wire(mm) welding current(A)
Φ1.0	Φ1.2	Φ1.4	Φ1.6
40~140	50~220	80~350	120~450

Matters needing attention:

1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package.

2.Welding shall be removed before welding surface oil, rust,water and other impurities.

3.The CO2 gas protection, CO2gas purity 99.98%.

4.CO2 welding protective gas flow rate should be controlled at 20~25L/min.

5.Wire extension length should be controlled in the range of 15~25mm.

6.Preheatig before welding to weld 150℃~300℃, 700℃~740℃ tempering treatment only after.
